General

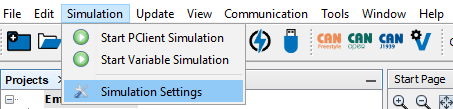

The settings dialog can be opened via the menu Simulation => Simulation Settings

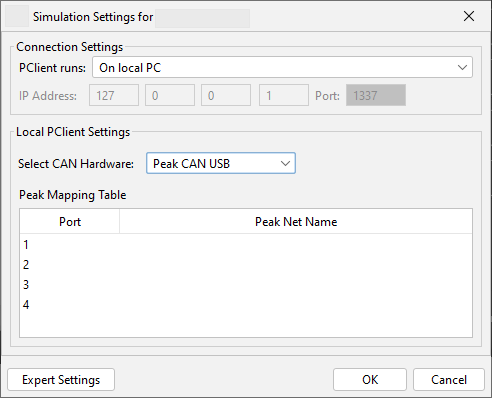

The following simulation settings can be made:
Connection Settings
Connection settings only need to be adjusted if the PClient shall not be run as a simulation on the local PC. If it is run as simulation don't change anything.
If a connection to a running PClient on a device via ethernet shall be used, the IP Address and Port for that connection can be entered. See here for details.
CAN Hardware Type
Currently two options for the CAN hardware are available:
Peak CAN USB dongle(s) with one CAN port per dongle.
For each CAN port a PEAK net can be defined to associate a certain dongle with the right CAN port. Note that the nets have to exist and they have to use the correct bit rate, otherwise they will not be used.
For the simple use case of having one dongle, no settings are necessary, the existing PCAN dongle will automatically be used. The settings are only necessary if >1 PEAK dongles are to be used.
Don't use CAN
No CAN bus will be used for the simulations. Navigation, scripts, etc. can still be simulated.
If you are not 100% sure that your CAN settings are correct and your PC is connected to a CAN bus with other devices on the bus or even in a vehicle, you should use this setting.
The CAN baudrate that the simulation will use is taken from the current project's settings.
Expert Settings

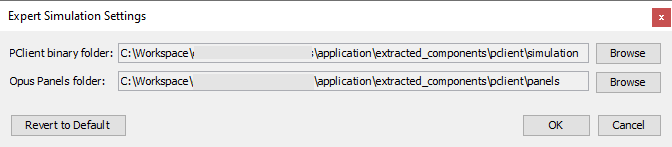

The Expert Simulation Settings dialog can be opened by clicking on the Expert Settings button on the bottom of the Simulation Settings dialog.
This dialog can be opened via Simulation Menu => Simulation Settings and then clicking the Expert Settings button
The following settings can be made:
PClient binary folder
This is the path to the directory where PClient is installed.
Under normal conditions it is not necessary to change this path. It is set by the tool installer.
If another PClient version shall be run with the current tool, the path of the PClient can be chosen via the Browse button.
Panel Folder
This is the path to the directory where the hardware panel templates are installed
Under normal conditions it is not neccessary to change this path. It is set by the tool installer.
Via the Browse button another path can be chosen.
If the PClient simulation does not show the housing of the device, make sure that this path is correct.
